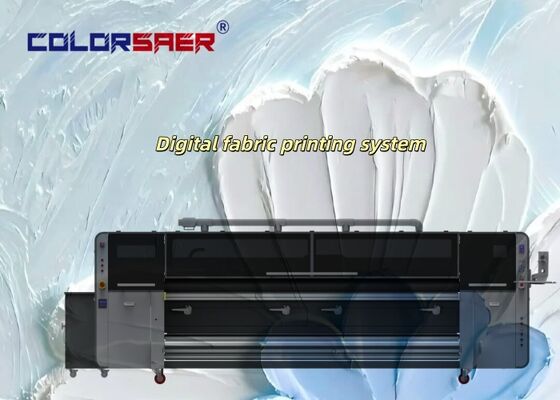

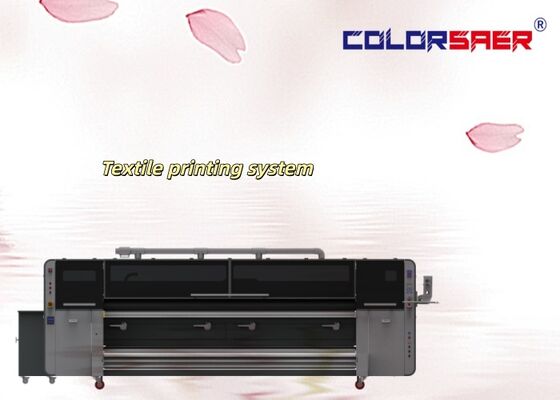

4 pcs or 8 pcs Print Head Direct to Fabric Printing Machine Direct Print Textile Printing Machine

شهادة
الصين Shanghai Color Digital Supplier Co., Ltd. الشهادات
الصين Shanghai Color Digital Supplier Co., Ltd. الشهادات
زبون مراجعة
أنا فقط أشعر أنني لست عميلًا لشركتك فقط ، فنحن أصدقاء حميمون. نحاول حل مشاكل مثل الأسرة.

—— زيكاي ألتاي ---- تركيا

مرت عامين منذ شراء الطابعة ، ونادرا ما لديه مشكلة ، راض عن الجودة.

—— وليام بييرو ---- الولايات المتحدة

لقد تم استخدام المنتج من SAER نحن سعداء جدا وراض عن منتجاتك وخدماتك.

—— السيد نراج ---- كينيا

ابن دردش الآن

4 pcs or 8 pcs Print Head Direct to Fabric Printing Machine Direct Print Textile Printing Machine

4 pcs or 8 pcs Print  Head Direct to Fabric Printing Machine Direct Print Textile Printing Machine
4 pcs or 8 pcs Print  Head Direct to Fabric Printing Machine Direct Print Textile Printing Machine 4 pcs or 8 pcs Print  Head Direct to Fabric Printing Machine Direct Print Textile Printing Machine

صورة كبيرة :  4 pcs or 8 pcs Print Head Direct to Fabric Printing Machine Direct Print Textile Printing Machine

تفاصيل المنتج:
مكان المنشأ: شنغهاي، الصين
اسم العلامة التجارية: SAER
إصدار الشهادات: CE Certification
رقم الموديل: CSR3200
شروط الدفع والشحن:
الحد الأدنى لكمية: 1 مجموعة
الأسعار: قابل للتفاوض
تفاصيل التغليف: صندوق خشبي غير التبخير
وقت التسليم: 15 يوم عمل
شروط الدفع: / تي تي، ويسترن يونيون
القدرة على العرض: 50 مجموعة في الشهر

4 pcs or 8 pcs Print Head Direct to Fabric Printing Machine Direct Print Textile Printing Machine

وصف
اللون والصفحة: متعدد الألوان الاستخدام: مجال الإعلان الداخلي والخارجي
نظام التشغيل التوافق: Windows 7 و Windows 10 أريكة: onyx
قوة عمل الآلة: 7kw الصف التلقائي: تلقائي
نوع النسيج المناسب: القطن والبوليستر معالجة الوسائط: لفة لفة + التغذية التلقائية + لفة تلقائية
نوع الحبر: حبر التسامي والحبر الصباغ مزود الطاقة: AC380، 50/60 هرتز

Product name: 4 pcs or 8 pcs Print Head Direct to Fabric Printing Machine Direct Print Textile Printing Machine

Printer working speed:





Printing resolution and speed

Resolution(dpi) speed
720*1200dpi(4 pass) 78m2/h
720*2400dpi(8 pass) 52m2/h
360*1200dpi(2 pass) 136m2/h

Machine Specifications:

Product Parameter
Model type CSR3200
Print head 4 pieces Epson i3200
Ink Sublimation ink, pigment ink
Number of nozzles (400 nozzles*8lines)*4head
Color Dual CMYK
Print head high 1.5mm/6mm (adjustable)
Ink supply mode Continuous ink supply
Max materials width 3300mm
Max printing width 3200mm
Roll outer diameter 3 inch
Maximum weight for roll material 100kg
Interface USB2.0
RAM 128M
Printer Power AC380V ,50/60HZ



Power

Heater 3KW
Printer 4KW
Temperature 30-32℃
Humidity 40-60%(Non-condensing)

Main Features :

Print head: Three Epson Print heads, faster speed, longer head life time. Feather printing function available, print heads correction and counterpoint are more easy. Intelligent print head cleaning service, supply safe and convenient print head cleaning and protection function.

X axis and Yaxis:
X axis and Y axis are using AC servo motors.

Guid Rail: Using HIWIN mute guide rail. Germany IGUS silent drag chain make your printing environment more quit .



4 pcs or 8 pcs Print  Head Direct to Fabric Printing Machine Direct Print Textile Printing Machine 0

4 pcs or 8 pcs Print  Head Direct to Fabric Printing Machine Direct Print Textile Printing Machine 1

Machine Advantages:

  1. Taking up and feeding fabric are smoothly
  2. Taking up and feeding roller are inflatable roller.
  3. Unique filtering lampblack system, make the picture very clean.
  4. Equipped with the feeding motor Positive and Negative transfer function, taking and feeding constant tension transmission system.

4 pcs or 8 pcs Print  Head Direct to Fabric Printing Machine Direct Print Textile Printing Machine 2



FAQ:

1) How can I place order?
A: Contact us about your order details,we will prepare the PI .

2) How can I pay you?
A: Uaually we accept T/T, Western Union

3) If I buy the machine, can you supply the ink, material, etc also?
A: Yes sure, please use the Original ink, it's better for the printer maintance, we can supply the relate material also.

4) I want to open a new business, can you give me some ideas?
A: Yes, we can, please tell me what products you want to make, and your request, we can offer you some projects.

5) How about the after-sale service?
A: Machine guarantee 12 month, printheads are no guarantee. We supply the on line technology even machine out of guarantee.



Professinal Service:

4 pcs or 8 pcs Print  Head Direct to Fabric Printing Machine Direct Print Textile Printing Machine 3

4 pcs or 8 pcs Print  Head Direct to Fabric Printing Machine Direct Print Textile Printing Machine 4


SAER COLOR redefines service standards enhance customer experience in all aspects:

1.SAER has more than20 years of foreign trade experience, focusing on the domestic printer industry. We are reliable,trusted,independent research and development, industry reputation are second to none;

2.365 days customer service and after-sales online service, can supply for one-on-one service.

3.Provide global installation services,make sure that each customer completes theinstallation within with 5 days and can start printing

4.Professional team makes packing list, bill of lading, commercial invoice, certificate of origin ,packing declaration, etc. To make sure customers have no worries about customs clearance and delivery.

Logistics Service:
4 pcs or 8 pcs Print  Head Direct to Fabric Printing Machine Direct Print Textile Printing Machine 5

Application industry:

  1. Clothing industry: sample print or character pattern of color printing.
  2. Personality print: such as shops, cell phone decoration shop, personality gift shop.
  3. Studio: digital image production.
  4. Advertising industry: indoor and outdoor advertising.
  5. Products proofing: all kinds of traditional printing sample production.

4 pcs or 8 pcs Print  Head Direct to Fabric Printing Machine Direct Print Textile Printing Machine 6
