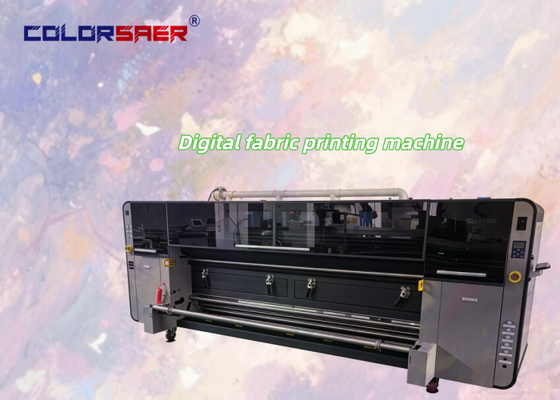

Direct to Fabrics Printer Digital Textile Printing Machine With KJ4B-QL Printheads 1800DPI and Automatic Feeding

Direct to Fabrics Printer Digital Textile Printing Machine With KJ4B-QL Printheads 1800DPI and Automatic Feeding
Direct to Fabrics Printer Digital Textile Printing Machine With KJ4B-QL Printheads 1800DPI and Automatic Feeding Direct to Fabrics Printer Digital Textile Printing Machine With KJ4B-QL Printheads 1800DPI and Automatic Feeding

صورة كبيرة :  Direct to Fabrics Printer Digital Textile Printing Machine With KJ4B-QL Printheads 1800DPI and Automatic Feeding

تفاصيل المنتج:
مكان المنشأ: شنغهاي، الصين
اسم العلامة التجارية: SAER
إصدار الشهادات: CE Certification
رقم الموديل: CSR3200
شروط الدفع والشحن:
الحد الأدنى لكمية: 1 مجموعة
الأسعار: قابل للتفاوض
تفاصيل التغليف: صندوق خشبي غير التبخير
وقت التسليم: 15 يوم عمل
شروط الدفع: / تي تي، ويسترن يونيون
القدرة على العرض: 50 مجموعة في الشهر

Direct to Fabrics Printer Digital Textile Printing Machine With KJ4B-QL Printheads 1800DPI and Automatic Feeding

وصف
اللون والصفحة: متعدد الألوان الاستخدام: مجال الإعلان الداخلي والخارجي
نظام التشغيل التوافق: Windows 7 و Windows 10 أريكة: onyx
قوة عمل الآلة: 9 كيلو واط الصف التلقائي: تلقائي
نوع النسيج المناسب: القطن والبوليستر معالجة الوسائط: لفة لفة + التغذية التلقائية + لفة تلقائية
نوع الحبر: حبر التسامي والحبر الصباغ مزود الطاقة: AC380، 50/60 هرتز
إبراز:

direct to fabric printer for cotton polyester,digital textile printing machine with KJ4B-QL printheads,sublimation printing machine 1800DPI

,

digital textile printing machine with KJ4B-QL printheads

,

sublimation printing machine 1800DPI

Product name: Direct to Fabrics Printer For 100% Cotton & Polyester Digital Textile Printing Machine With KJ4B-QL Printheads 1800DPI

Machine working speed:





Printing resolution and speed

Resolution(dpi) speed
600*600dpi(2 pass) 110m2/h
600*1200dpi(4 pass) 90m2/h
600*1800dpi(6 pass) 70m2/h

Printer Specifications:

Product Parameter
Model type CSR3200
Print head 4 pieces KJ4B-QL
Ink Sublimation ink, pigment ink
Number of nozzles 2656 nozzles
Color CMYK
Print head high 1.5mm/6mm (adjustable)
Ink supply mode Continuous ink supply
Max materials width 3300mm
Max printing width 3200mm
Roll outer diameter 3 inch
Maximum weight for roll material 100kg
Interface USB2.0
RAM 128M
Printer Power AC380V ,50/60HZ



Power

Heater 3KW
Printer 6KW
Temperature 30-32℃
Humidity 40-60%(Non-condensing)

Our Machine Advantages:

  1. Taking up and feeding fabric are smoothly
  2. Taking up and feeding roller are inflatable roller.
  3. Unique filtering lampblack system, make the picture very clean.
  4. Equipped with the feeding motor Positive and Negative transfer function, taking and feeding constant tension transmission system.

Direct to Fabrics Printer Digital Textile Printing Machine With KJ4B-QL Printheads 1800DPI and Automatic Feeding 0

Main Features :

Guid Rail: Using HIWIN mute guide rail. Germany IGUS silent drag chain make your printing environment more quit .

X axis and Yaxis:
X axis and Y axis are using AC servo motors.

Print head: Three Epson Print heads, faster speed, longer head life time. Feather printing function available, print heads correction and counterpoint are more easy. Intelligent print head cleaning service, supply safe and convenient print head cleaning and protection function.

Direct to Fabrics Printer Digital Textile Printing Machine With KJ4B-QL Printheads 1800DPI and Automatic Feeding 1

Direct to Fabrics Printer Digital Textile Printing Machine With KJ4B-QL Printheads 1800DPI and Automatic Feeding 2

FAQ:



1) If I buy the machine, can you supply the ink, material, etc also?
A: Yes sure, please use the Original ink, it's better for the printer maintance, we can supply the relate material also.

2) How about the after-sale service?
A: Machine guarantee 12 month, printheads are no guarantee. We supply the on line technology even machine out of guarantee.

3) How can I place order?
A: Contact us about your order details,we will prepare the PI .

4) How can I pay you?
A: Uaually we accept T/T, Western Union

5) I want to open a new business, can you give me some ideas?
A: Yes, we can, please tell me what products you want to make, and your request, we can offer you some projects.



Professinal Service:

Direct to Fabrics Printer Digital Textile Printing Machine With KJ4B-QL Printheads 1800DPI and Automatic Feeding 3

Direct to Fabrics Printer Digital Textile Printing Machine With KJ4B-QL Printheads 1800DPI and Automatic Feeding 4

SAER COLOR redefines service standards enhance customer experience in all aspects:

1.SAER has more than20 years of foreign trade experience, focusing on the domestic printer industry. We are reliable,trusted,independent research and development, industry reputation are second to none;

2.Professional team makes packing list, bill of lading, commercial invoice, certificate of origin ,packing declaration, etc. To make sure customers have no worries about customs clearance and delivery.

3.365 days customer service and after-sales online service, can supply for one-on-one service.

4.Provide global installation services,make sure that each customer completes theinstallation within with 5 days and can start printing

Logistics Service:
Direct to Fabrics Printer Digital Textile Printing Machine With KJ4B-QL Printheads 1800DPI and Automatic Feeding 5

Application industry:

  1. Clothing industry: sample print or character pattern of color printing.
  2. Personality print: such as shops, cell phone decoration shop, personality gift shop.
  3. Studio: digital image production.
  4. Advertising industry: indoor and outdoor advertising.
  5. Products proofing: all kinds of traditional printing sample production.

Direct to Fabrics Printer Digital Textile Printing Machine With KJ4B-QL Printheads 1800DPI and Automatic Feeding 6
